#assisted driving #localization #GNSS #cloud #connectivity

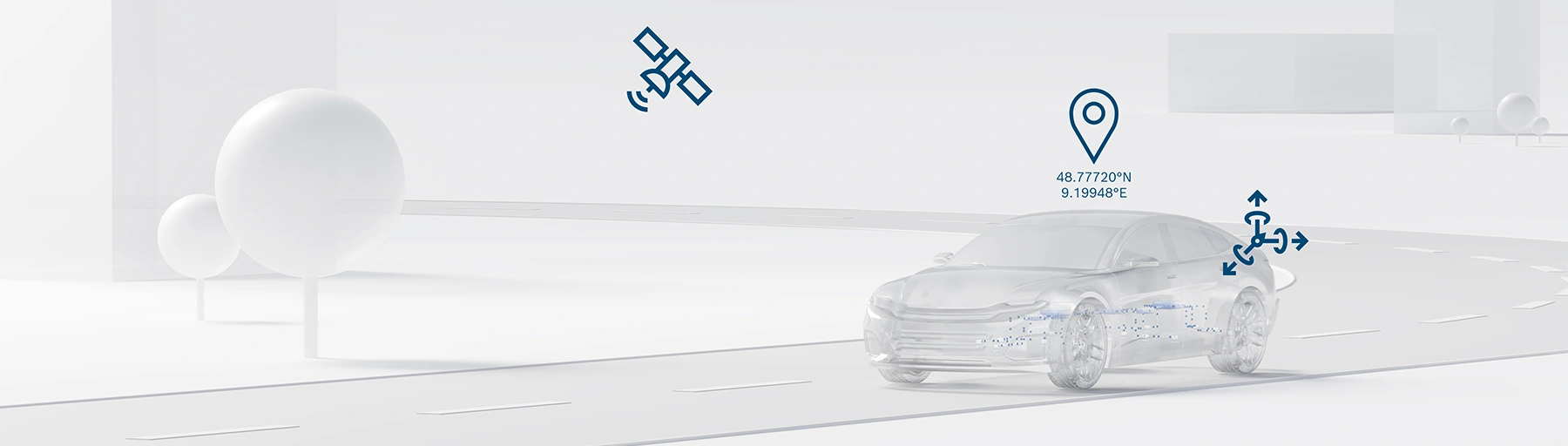

Vehicle localization system

Highly precise absolute vehicle positioning based on the global navigation satellite system (GNSS)

Assisted and automated driving requires precise, reliable localization of the vehicle that is available at all times. The vehicle localization system provides a software-based modular solution that can be flexibly integrated into OEMs’ vehicle ECUs (including domain computers). In addition, it offers the possibility of using interfaces to external components for positioning, such as inertial sensor systems, GNSS receivers, and wheel speed sensors.

Enables

precise, reliable

vehicle localization for assisted and automated driving based on satellite navigation data

Meets

ISO 26262

and automotive standards

Operation

Operation vehicle localization system

How the vehicle localization system works

To ensure highly accurate localization, the vehicle localization system uses primarily satellite navigation data. If the connection is disrupted, for example under bridges or in a tunnel, the system can rely on inertial sensors in the vehicle. Yaw-rate and acceleration sensors and the signals from wheel speed sensors are used to precisely track the vehicle’s direction of movement.

How the integrated GNSS correction service works

The GNSS is subject to sources of error such as satellite clock errors and orbital errors, disruptions caused by the ionosphere and troposphere, multipath effects, and receiver errors. The correction service provides correction data for these sources of error using reference stations and a data processing center. The correction data is transmitted through the cloud.

White paper: SOTIF strategy for the validation of a GNSS-based vehicle localization sensor

In the future, more and more of the vehicles on the road will use assisted and automated driving features. Precise, reliable vehicle localization is an important prerequisite for the introduction of assisted and automated driving on a large scale, and to make it safe, available, and affordable.

The vehicle localization system from Bosch plays a key role in this. In this white paper, a systematic, structured SOTIF validation strategy will be presented.

Download whitepaper

Technical data

≤ 10 cm

Absolute position (transversely/longitudinally at 1 sigma)

0,01 m/s

Speed (transversely/longitudinally at 1 sigma)

ASIL B

safety integrity level

10^-5/h

Targeted integrity risk with 3 m limit

PRODUCT BENEFITS

Modularity – runs on OEM-specified interfaces and supports both centralized and decentralized vehicle architectures
Key technology – improves the availability and robustness of assisted and automated driving functions in all traffic and weather conditions
Tried and tested – many years of expertise in GNSS, inertial sensors, and localization systems

Highly precise – localization enables exact, reliable vehicle positioning of ≤ 10 cm on average, making precise positioning possible at the lane level
Worldwide – global coverage with compatible, reliable correction services
