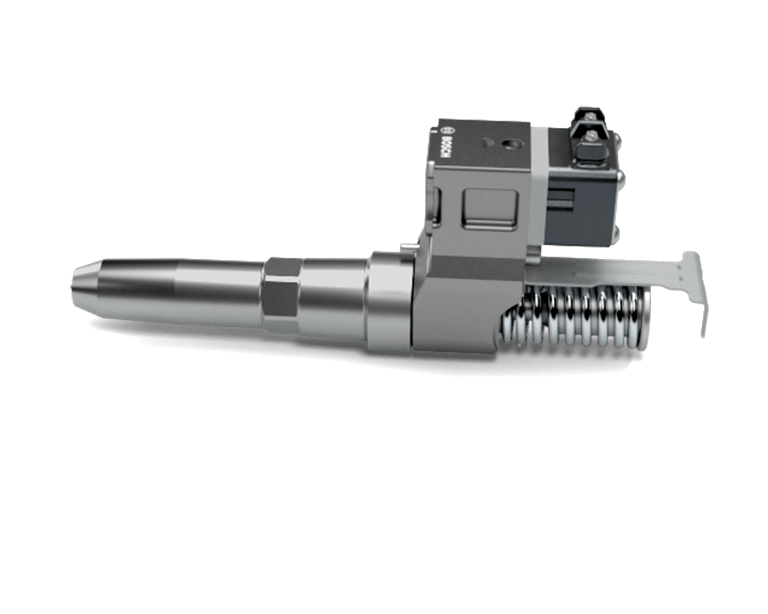

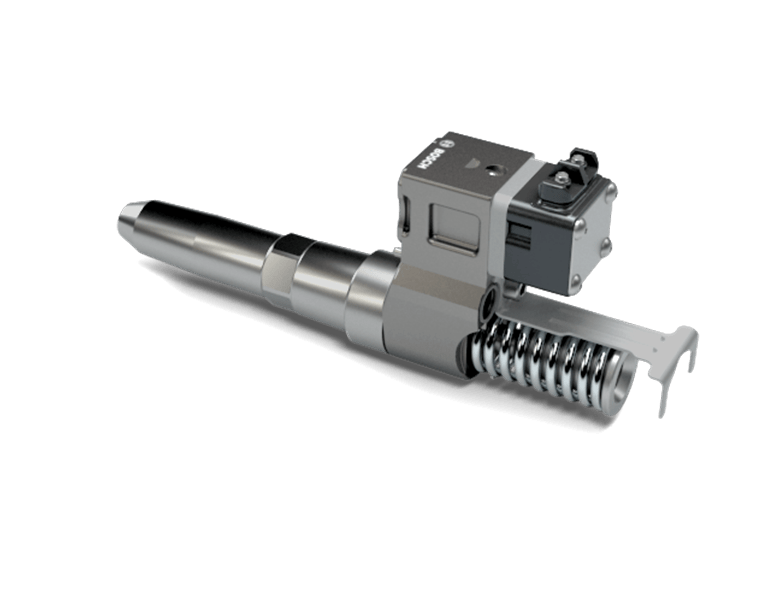

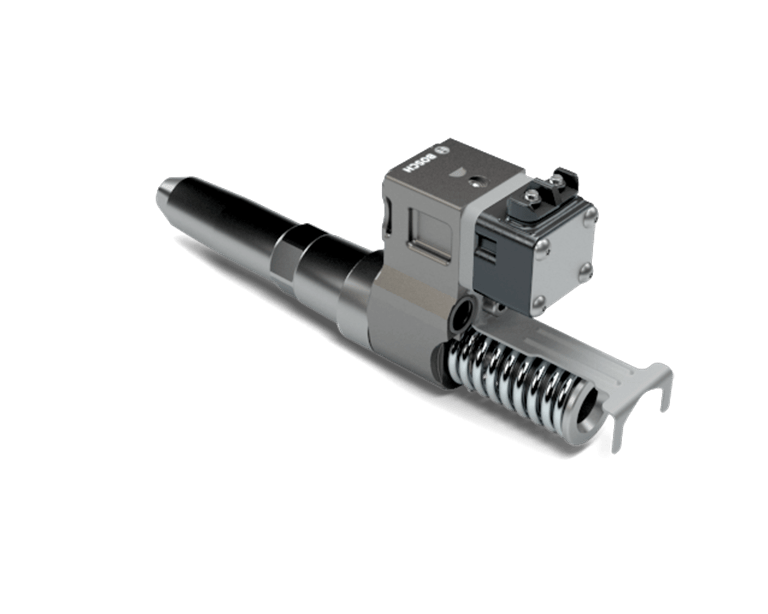

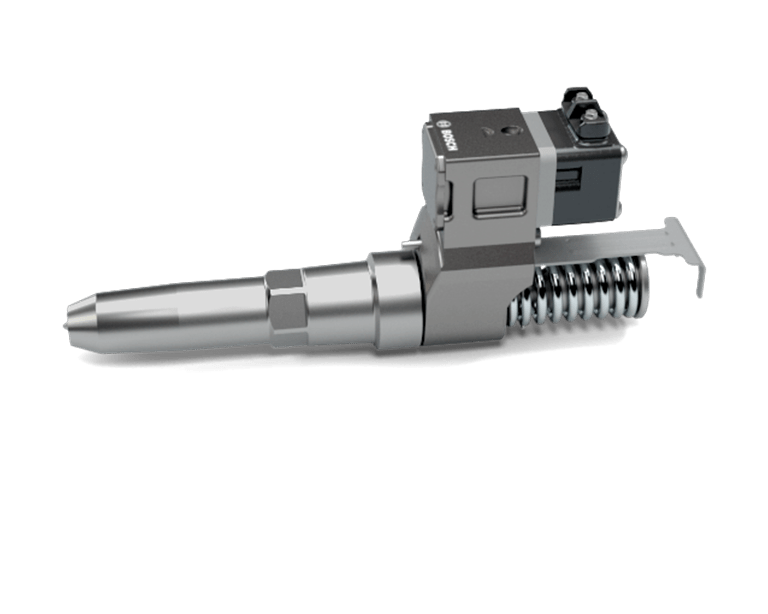

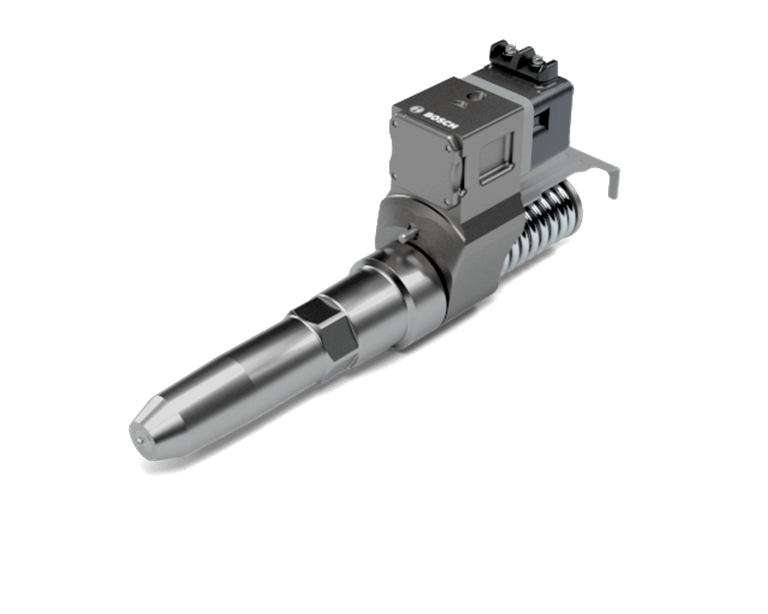

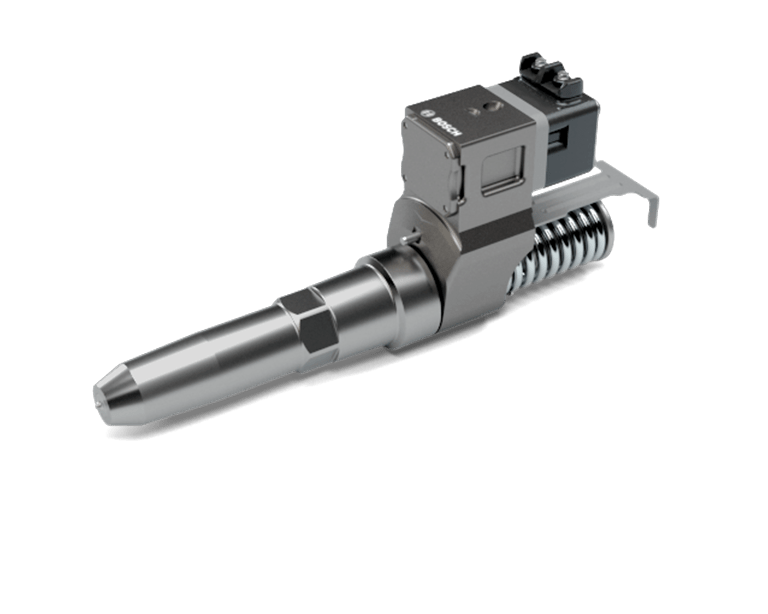

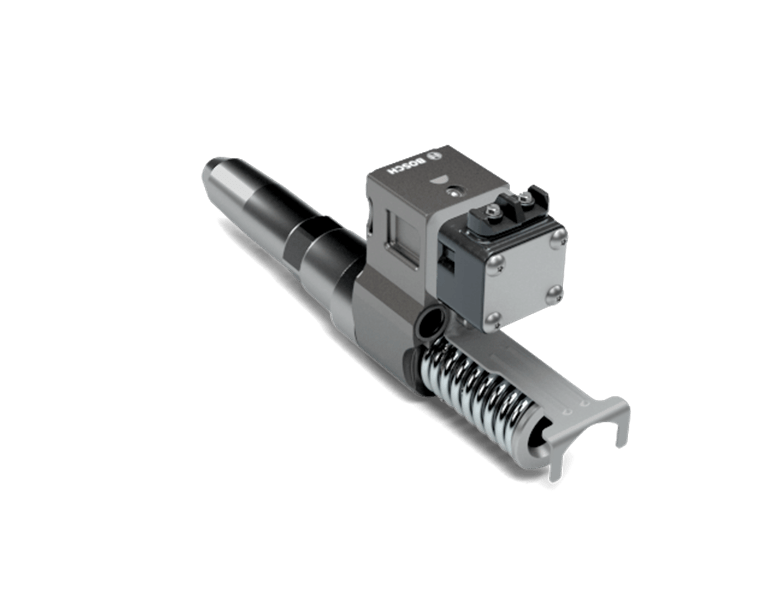

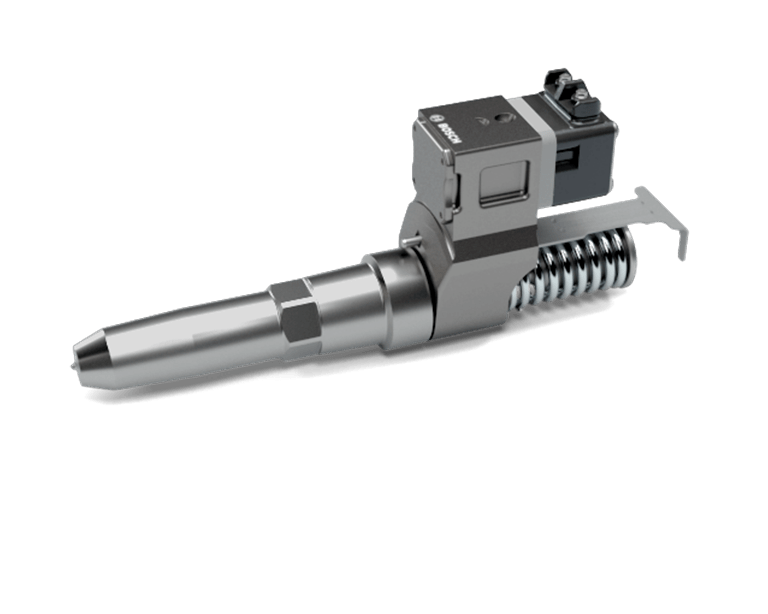

The robust unit injector has an integrated high-pressure pump and injects the right amount of fuel required for efficient combustion into the cylinder.
of injection pressure for efficient combustion
of reliable operation due to robust system design
Drag to rotate

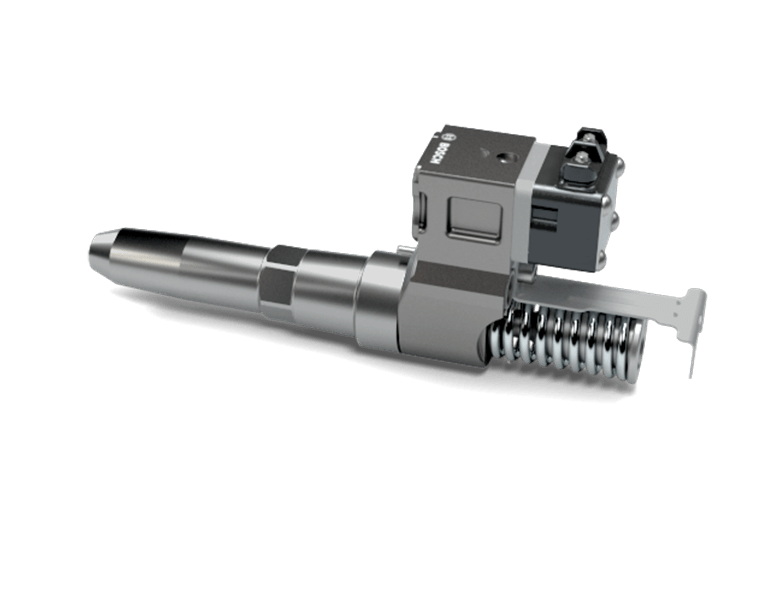

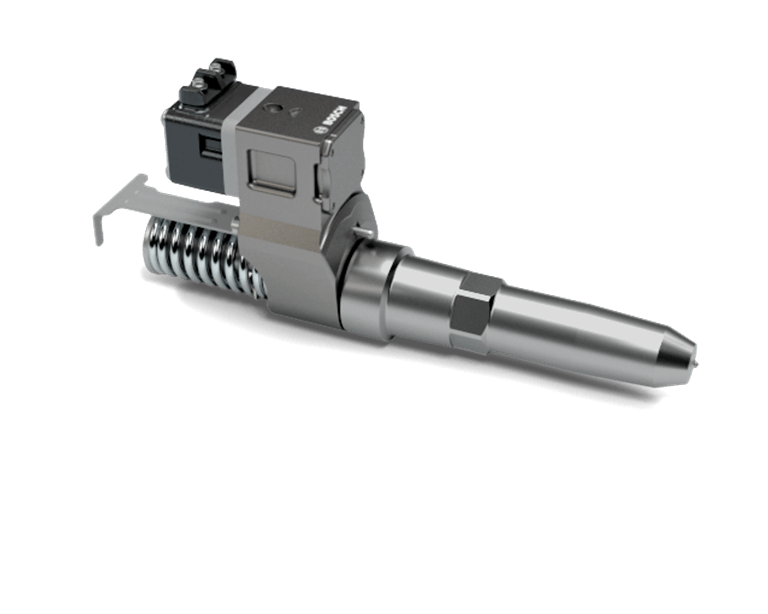

The electronically controlled unit injector generates a high fuel pressure using the integrated piston pump and injects exact quantities of fuel into the combustion chamber.
The advantage of the unit injector system is that there is no high-pressure line between the high-pressure pump and injection nozzle.
Return spring
Pump body
Pump piston
Cylinder head
Clamping nut
Stator
Anchor plate
Solenoid valve needle
Solenoid valve clamping nut
High-pressure plug
Low-pressure plug
Solenoid valve lift stop
Choke
Fuel return
Fuel feed
Nozzle spring
Pressure bolt
Shim washer
Injection nozzle
The electronically controlled unit injector is a single-cylinder injection pump with integrated injection nozzle and solenoid valve that is installed directly in the cylinder head of the diesel engine. A separate injector is assigned to each engine cylinder. The unit injectors are powered by an injection cam on the engine camshaft via a rocker lever.
The injection start and quantity are determined by the fast switching solenoid valve, although these variables can be freely selected in the program. The solenoid valve is opened when not energized.
This ensures a free passage from the fuel feed of the low-pressure system through the pump area and back into the low-pressure system in the cylinder head of the engine, which allows filling of the pump chamber during the suction stroke of the pump piston. This bypass is closed when the solenoid valve is energized during the delivery stroke of the pump piston. This causes pressure to build up in the high-pressure area and the injection of fuel into the engine's combustion chamber when the nozzle opening pressure is exceeded.
